Ordering Parts Online

Sierra Products, Inc. recommends all repairs be accomplished by a certified hearth products service company. Part selection and application is by purchaser. Any exchange or return require a "Return Merchandise Authorization" (RMA) and must be requested with in 30 days of receipt. Return parts are subject to our Terms and Condition of Sale and a 20% restocking fee. Parts carry a 90 day warranty from the date of sale excluding electronic and electric parts that could be damaged from installation. Orders are entered daily Monday-Friday during normal business hours. Please allow 3-5 business days for processing and shipping. Order confirmation and shipment tracking information will be provided through PayPal processing account. For updates or questions on a specific part ship and transit times contact Customer Service by visiting our contact page.

Shipping & Handling Charges: SPI ships all parts prepaid and charges $19.00 minimum shipping and handling fee for orders less than $249. Orders totaling $250 or more, shipping and handling charge is included. This applies for US lower 48 states. Alaska/Hawaii and International, contact customer service for specific shipping and handling charges.

General Policy and Conditions of Sale

Legacy Pre-2020 (Replacement Parts Available) Sierra™ 4700TEC Insert

The 4700 Fireplace Insert was designed to fit the largest masonry fireplaces and utilize a proven catalytic combustor design providing high burn efficiency and 2.5 Grams/hr. Replacement parts and rebuild kits are available from our parts page.

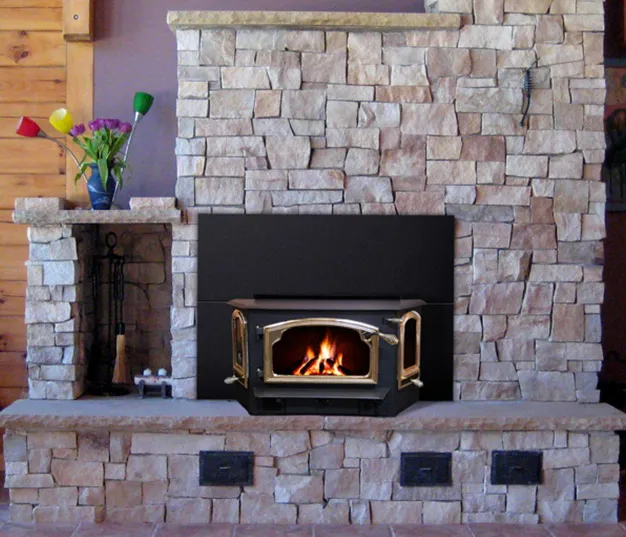

Sierra™ 4700TE Fireplace Insert

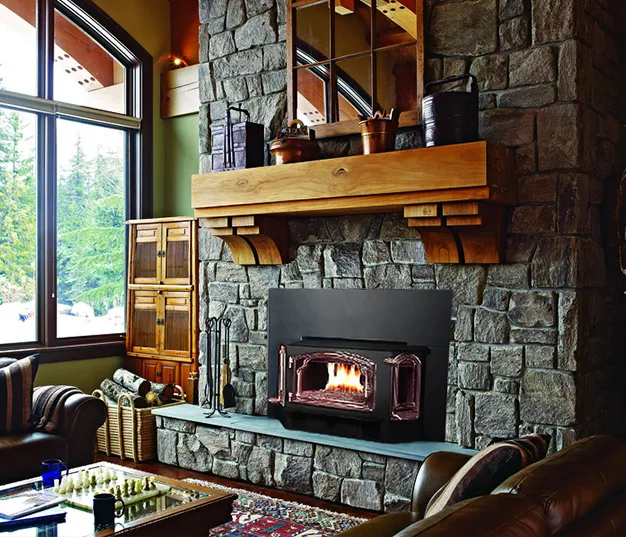

Sierra™ 4700TE Fireplace Insert

A true three window bay view allows for wide angle view of the fire. A thermostat controlled dual fan circulates room air for maximum efficiency. This is your big house wood heater!

Legacy Pre-2015 (Replacement Parts Available) Sierra™ 2100

Attractive design with step top and heavy duty construction. The 2100 has pedestal and leg freestanding models and a hearth mount with rear flue connection.

All stoves feature heavy duty steel construction, wide view ceramic glass, large firebox for overnight burns, simple single lever air control, and ash removal system. Additional features include outside combustions air, mobile home approval, and optional 130 cfm blower system.

Sierra™ 2100PB

Sierra™ 2100FS

Sierra™ 2100HS

Legacy Pre-2015 (Replacement Parts Available) Sierra™ 5300

Originally designed as a zero clearance fireplace insert the "Cricket" has a small profile to allow for easy installation. Also available as a free standing stove with pedestal and reduced clearance jacket.

Sierra™ 5300 Pedestal

Sierra™ 5300 Insert

Shortcut to: Sierra 2100, Sierra 4700TEC, Sierra 5300, Sierra 8000

Sierra 2100 Wood Heater

QTY.	PART#	DESCRIPTION	PRICE
	100045.1	Metallic Black Touch Up #3609	$37.00
	11069	Combustion Air Kit	$156.00
	110109	Blower (only) 160cfm 120vac 60hz - Sierra 2100	$209.00
	110467	Ceramic Door Glass, EF2100	$162.50
	408485	Ceramic Door Glass Gasket	$38.00
	110468	Brass Hinge Pin EF2100	$21.36
	110472	Handle, Spring, Small	$20.91
	110477	Handle, Spring, Large	$24.96
	201823.1	2100 Comb SS Air Tube, Front	$99.00
	201823.2	2100 Comb SS Air Tube, Rear (2 required)	$99.00 each
	201839	Ash Dump Plug	$64.50
	410163	Sierra 2100 Refractory Set 8 pieces - Complete set (Includes additional packaging and freight for ceramics)	$415.00
	300453	Sierra 2100 Ash Box (HS or FS)	$124.00
	300572	Sierra Wood Stove Door Assy Blk w/handle (No glass or gasket, 2009 or newer)	$740.00
	408484	Front Door Gasket, Sierra 2100	$43.00
	410129	Sierra Door Collar Latch w/set screw	$46.85
	401220	Sierra Door Handle w/collar (fits all Sierra Stoves)	$78.75

QTY.	PART#	DESCRIPTION	PRICE
	100045.1	Metallic Black Touch Up #3609	$37.00
	110451	Ash Pan Knob	$22.26
	120049	Fan Thermo Disk	$81.60
	120119	Speed Control (Rheostat)	$98.35
	300572	Sierra Wood Stove Door Assy Blk w/handle (No glass or gasket, 2009 or newer)	$740.00
	408484	Front Door Gasket, Sierra 4700TEC	$43.00
	400064	Ceramic Door Glass (Front), 4700TEC	$162.50
	400432	Primary Air Slide	$41.50
	400590	Hinge Pin Brass	$21.36
	401220	Sierra Door Handle w/collar (fits all Sierra Stoves)	$78.75
	410129	Sierra Door Collar Latch w/set screw	$46.85
	402021	Sierra Med. Spring Handle	$20.96
	404523	Sierra Prim. Air Spring Handle	$24.96
	404750	Sierra 4700/8000 Ash Pan Assy w/pan, knob, latch & gasket	$223.00
	404750.1	Sierra Ash Pan Knob, Spring, Lever 4700/8000 (2008 and later)	$82.00
	404755r1	Sierra 8000/4700 L/Pin Guide (3 Plate Door Latch)	$38.10
	404759	4700 Side Window Gasket	$24.25
	407054	Sierra Ash Grate	$104.00
	408417	Primary Air Slide - Sub Assy.	$86.00
	408458	Sierra Catalytic Combustor (2 req. - sold as ea.)	$270.00
	408459	Catalytic Holder	$150.50
	408463	Air Mixer Baffle Cover	$196.90
	408473.36	Bypass Damper Gasket	$30.00
	408474.36	Combustor Assembly Base or Ash Pan Gasket	$28.00
	408475	Catalytic Interam Gasket (Sold as set - 2 pcs)	$62.00
	408467	Air Mixer, SS	$299.30
	408485	Front Window Gasket	$39.70
	410052	4700 Fan and Blower Motor (2 Required)	$87.50
	410093	Flue Adapter	$157.00
	410098	4700 Combustor Kit - Preassembled (2) Cat. Comb, Holders, Air Mixer Assy, Gaskets & Bolts	$795.00
	410162	Sierra 4700 Refractory Set (4pcs), for all 4700 models	$389.00

QTY.	PART#	DESCRIPTION	PRICE
	100045.1	Metallic Black Touch Up #3609	$37.00
	110109	Blower (only) 160cfm 120vac 60hz - Sierra 5300	$218.00
	300572	Sierra Wood Stove Door Assy Blk w/handle (No glass or gasket, 2009 or newer)	$740.00
	408484	Front Door Gasket, Sierra 5300	$44.00
	400064	Ceramic Door Glass (Front), 5300	$162.50
	408485	Front Window Gasket	$39.70
	400590	Hinge Pin Brass	$21.36
	401220	Sierra Door handle w/collar (fits all Sierra Stoves)	$78.75
	402021	Sierra Med. Spring Handle	$20.96
	404523	Sierra Prim. Air Spring Handle	$24.96
	405315	5300 Heat Reflector Plate	$194.75
	405331	Collar for Secondary Air Tubes (Includes collar, nut, screw - Sold as each)	$19.25
	405360	Front Secondary Air Tube	$109.00
	405361	Rear Secondary Air Tube	$109.00
	410129	Sierra Door Collar Latch w/ set screw	$46.85
	410164	Sierra 5300 Refractory Set 8 pieces (for all 5300)	$315.00

QTY.	PART#	DESCRIPTION	PRICE
	100045.1	Metallic Black Touch Up #3609	$37.00
	110451	Ash Pan Knob	$22.26
	120119	Speed Control (Rheostat)	$98.35
	300572	Sierra Wood Stove Door Assy Blk w/handle (No glass or gasket, 2009 or newer)	$740.00
	408484	Front Door Gasket, Sierra 8000	$43.00
	400064	Ceramic Door Glass (Front), 8000	$162.50
	400208	Flue Collar, Cast Iron S8000	$67.65
	400209	Flue Cap, Cast Iron S8000	$64.65
	400432	Primary Air Slide	$41.50
	400590	Hinge Pin Brass	$21.36
	401220	Sierra Door handle w/collar (fits all Sierra Stoves)	$78.75
	402021	Sierra Med. Spring Handle	$20.96
	404523	Sierra Prim. Air Spring Handle	$24.96
	404750	Sierra 4700/8000 Ash Pan Assy w/pan, knob, latch & gasket	$223.00
	404750.1	Sierra Ash Pan Knob, Spring, Lever 4700/8000 (2008 and later)	$82.00
	404755r1	Sierra 8000/4700 L/Pin Guide (3 Plate Door Latch)	$38.10
	407054	Sierra Ash Grate	$104.00
	408417	Primary Air Slide - Sub Assy.	$86.00
	408419	Cap and Flue Collar Gasket	$39.30
	408440	Sierra 8000 Fuel Door w/Handle & Gasket	$393.50
	408458	Sierra Catalytic Combustor (2 Req. - Sold as ea.)	$270.00
	408459	Catalytic Holder	$150.50
	408463	Air Mixer Baffle Cover	$196.90
	408473.36	Bypass Damper Gasket	$30.00
	408474.36	Combustor Assembly Base or Ash Pan Gasket	$28.00
	408474.48	Side Door Gasket	$38.00
	408475	Catalytic Interam Gasket (Sold as set - 2 pcs)	$62.00
	408467	Air Mixer, SS	$299.30
	408485	Front Window Gasket	$39.70
	410097	Combustor Kit	$795.00
	410035	Fuel Door Hinge Pin	$16.60
	410129	Sierra Door Collar Latch w/set screw	$46.85
	410165	Sierra 8000 Refractory Set (4 pcs), for all 8000TEC	$279.00

Sierra 8000 General Part Specs

• Burn Box: 29" x 14 1/2"
• Door Size: 19 1/2" X 13"
• Front Door Opening: 17 1/2" x 8 1/2"
• Side Door: 11" x 10"
• Cat. Holder: 4 1/2" x 13 3/8" 2 1/4" (h)
• Cats: 3 1/2" x 6 1/4" x 2"

Sierra 4700/8000 Combustor Kit Breakdown:
